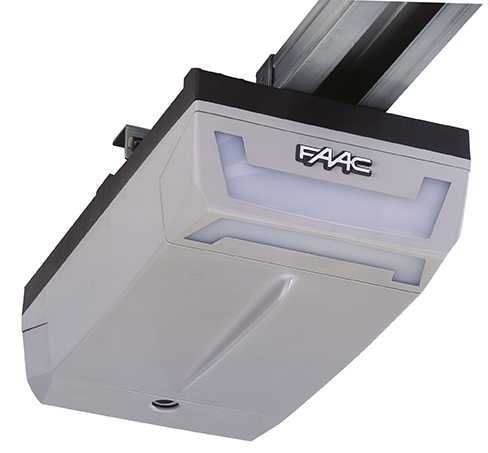

FAAC D1000
24V Garage Door Operator
- Intelligent release
- Burglar proof without requiring additional locks
- Intelligent load monitor
- Suitable for both chain and belt drive
- Adjustable electronic soft start included
- Quick and easy installation
The FAAC D1000 system makes it possible to automate balanced roof gate doors for garages for example tenant-owner associations. The product consists of an electromechanical operator, electronic control unit and interior lighting built into a single unit. This unit is mounted on the roof and opens the door by a belt transmission.
Tags: Garage doors
Technical specification
Opening time/speed | 6.6 m/min |
Maximum usage | 100% |
Drive unit | With brushes 24V |
Slowdown | 1.3 m/min |
Voltage | 230V~ 50Hz |
Power consumption | 350 W |
Encoder | Electronic |
Operating temp. | -20 °C ÷ +55 °C |
Protection class | IP 20 |
Weight | 6.4 kg |
Dimensions | 360 x 200 x 145 mm |
Min. clearance | 35 mm |
Courtesy lamp | 230V - 40 W (max) |
Noise level | 45 dbA |
Max thrust | 1000 N |
Documents
Certification:
