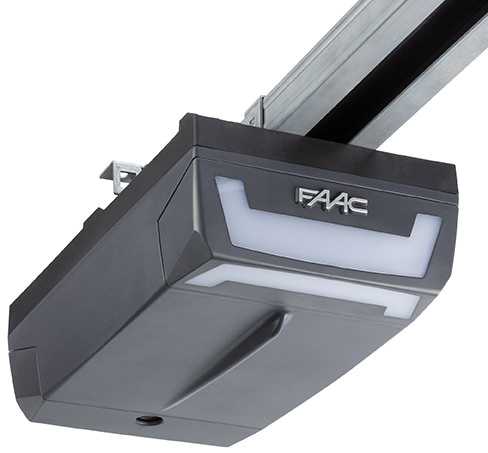

FAAC D700 HS

24V Garage Door Operator. Extra fast.

The FAAC D700HS system makes it possible to automate balanced roof rack doors for garage for private use. The product consists of an electromechanical operator, electronic control unit and interior lighting built into a single unit. This unit is mounted on the roof and opens the door by chain or belt transmission.



Note! The D700HS must be supplemented with one or two engine rails with belt transmission.

Tags: Garage doors

The FAAC D700HS system makes it possible to automate balanced roof rack doors for garage for private use.
Technical specification

Opening time/speed

12 m/min

Maximum usage

100%

Drive unit

With brushes 24 VDC

Slowdown

2.5 m/min

Voltage

230 VAC, 50/60 Hz

Power consumption

440 W

Encoder

Electronic

Operating temp.

-20 °C ÷ +55 °C

Protection class

IP 20

Weight

6.3 kg

Dimensions

360 x 200 x 145 mm

Min. clearance

35 mm

Courtesy lamp

230V - 40 W (max)

Noise level

45 dbA

Max thrust

700 N

Documents
Certification:
CE Marking
Safezone
Omnidec
Double insulation
