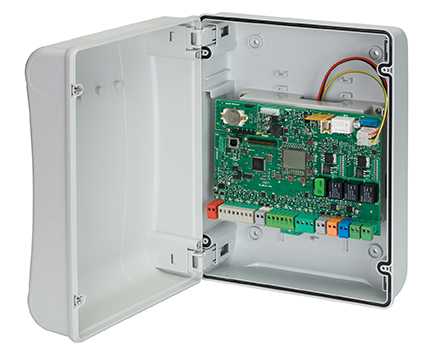

FAAC E124S
Electronic control board
-
Compatible with all receivers (3-pole, 5-pole or external) and all photocells (BUS as well as traditional).
Tags: Control boards
Technical specification
Voltage | 230V~ (+6%-10%) 50(60) Hz |
Power consumption | 4 W Stand-by - approx. 400 W max |
Max thrust | 7 A |
Max. accessories load | 500 mA 24V - 500 mA BUS 2easy |
Operating temp. | -20°C ÷ +55°C |
Voltage | 24 V |
Programming | No. 3 buttons (+,-, F) and LCD display or Simply Connect devices |
Thrust power | Programmable in 50 levels |
Speed adjustment | Programmable in 10 levels |
Inputs | 4 programmable inputs |
Outputs | 2 programmable outputs |
Rapid connector | FDS TECHNOLOGY ( XF 433-868MHZ), OmniDEC (XF433 or XF868), 5-pin board plug for MINIDEC, DECODER, RP/RP2 receiver |
Fuses | Self-resetting |
